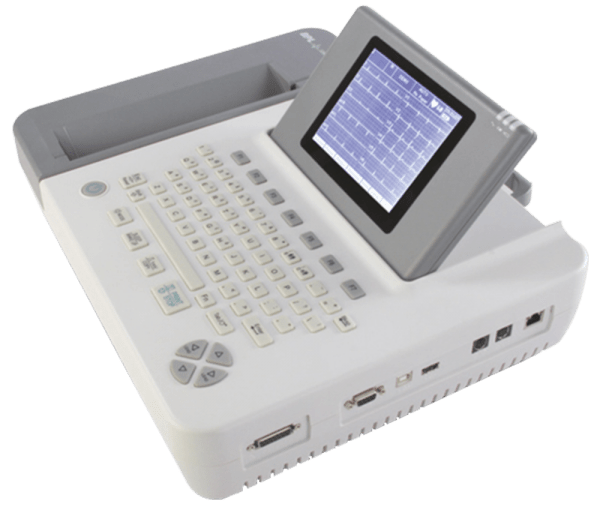

BPL Cardiart 9108 Features
- 12-channel ECG recording
- 5.7-inch foldable LCD display
- Automatic parameter measurement and interpretation
- 24-bit A/D converter, 0.01 – 300 Hz bandwidth, 16000 Hz sampling frequency
- Internal storage of upto 800 ECGs that can be enlarged by USB
- Built-in rechargeable Li-ion battery
- Report formats: PDF and optional SCP/FDA-XML/DICOM data export
- Connectivity: FTP, supports barcode scanner & USB printer, optional Wi-Fi
- Optional PC interface software allows to access EMR/PACs/GDT-based systems (HL7 protocol)
Product Specification
| Number Of Channels | 12 |
| Machine Type | Portable |
| Brand | BPL |
| Model Number/Name | BPL Cardiart 9108 |
| Digital Display | Yes |
| Battery | Built-In Rechargeable 14.8V,Li-Ion Battery,2500 mAh |
| Dimension | 420mmx330mm x105mm |
| Brand Preference | BPL |
Product Specifications
| General | |
| Display | 5.7 inch single color LCD Display |
| Weight | approx.5.0kg (11.0 lbs)(Excluding recorder paper and battery) |
| Dimension | 420mmx330mm x105mm |
| Communication Interface | Ethernet, RS232, USB |
| Power Supply | |
| Power Supply | 100V-240VAC, 50Hz/60Hz |
| Battery | Built-In Rechargeable 14.8V, Li-Ion Battery, 2500 mAh |
| Battery Life | When the battery is fully charged, Cardiart 9108 can work normally about 4 hours, and it can continually print about 1.5 hours in the manual mode or print about 300 ECG reports of 3×4+1R in the auto mode. |
| Environmental | |
| Transportation and Storage | Temperature: 20ºC~ +55ºC
Relative Humidity: 25%~93%,Non-Condensing |
| Working | Temperature: +5ºC ~ +40ºC
Relative Humidity: 25%~80%,Non-Condensing |
| ECG | |
| Leads: | 12 standard leads |
| Acquisition Mode: | simultaneously 12 leads |
| A/D: | 24 bits |
| Resolution: | 2.52uV/LSB |
| Time Constant: | ≥3.2s |
| Frequency Response | 0.05Hz ~ 150Hz (-3dB) |
| Gain | 2.5, 5, 10, 20, 10/5, AGC (mm/mV) |
| Input Impedance | ≥50MΩ (10Hz) |
| Input Circuit Current | ≤0.01μA |
| Input Voltage Range | ≤±5 mVpp |
| Calibration Voltage | 1mV±2% |
| DC Offset Voltage | ±600mV |
| Noise | ≤12.5 μVp-p |
| Multichannel crosstalk | ≤0.5mm |
| Filter | AC Filter: On/Off
DFT Filter: 0.01Hz/0.05Hz/0.15Hz/0.25Hz/0.32Hz/0.5Hz/0.67Hz EMG Filter: Off/25Hz/35Hz/45Hz LOWPASS Filter: 300Hz/270Hz/150Hz/100Hz/75Hz |
| CMRR | ≥123dB |
| Sampling Frequency | 16000Hz |
| Anti-baseline Drift | Automatic |
| Heart Rate Range | 30-300 bpm, ±1 Bpm |
| Pace Maker Detection | |
| Amplitude | ±2 to ±700 mV |
| Width | 0.1 to 2.0 ms |
| Sampling Frequency | 16,000Hz / Sec/ Channel |
| Printer | |
| Recorder | Thermal printer |
| Record Paper | Folded thermal paper: 210mm×295mm×100pages
Folded thermal paper: 215mm×280mm×100pages (Optional) Rolled thermal paper: 210mm×30m (Optional) |
| Print Modes | Manual: 3, 6 and 12, Auto: 3×4,3×4+1R,3×4+3R,6×2,6×2+1R,12×1 |
| Rhythm | Single lead and three lead |
| R-R Mode Analysis | R-R histogram and R-R trend |
| Record Speed (mm/secs) | 5,6.25,10,12.5,25 and 50MM/SEC (±3%) |
Country Of Origin – India
Warranty – 1 Year
In the Box
ECG Cable 1 No.
Bulb Electrode 1 Set
Clamp Electrode 1 Set
Gel Bottle 1 No.
Power Cable 1 No.
User Manual 1 No.
