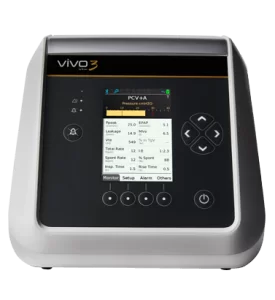

Breas Vivo 3 is a new-generation bi-level ventilator designed for personalized and comfortable respiratory support – both non-invasive and invasive – for non-dependent patients with chronic breathing insufficiency. The intuitive interface ensures ease of use. A comprehensive set of modes and extensive monitoring capabilities allow for great flexibility, making the ventilator a perfect choice for a variety of patients.
Features
COMPACT
- One Platform-Three Models
- Lightweight and Compact
- Integrated Humidifier
- Internal Battery 3h
ADAPTABLE
- Wide range of Modes
- Adult and paediatric (>10kg)
- Intuitive Interface
- Extensive therapy data
- Suitable for use in hospital and home
- Closer monitoring with Breas accessory box
CONNECTED
Making Connected Care more Insightful
- EveryWare – Secure cloud-based remote monitoring*
- PC Software – Desktop-based with Live Viewer
Breas Vivo 3 Technical Specifications
Settings / Performance
Ventilation Modes
S, ST, T, PSV, PCV+A , CPAP
Adult/Pediatric
>10kg
Profiles
3 settable profiles
IPAP
4 – 40 cmH2O
EPAP
2 – 20 cm H2O
Breath Rate/Back-up Rate
0-40 bpm
Inspiratory Time
0.3 – 3s
Rise Time
1 – 9
Inspiratory Trigger
1 – 9
Expiratory Trigger
1 – 9
Minimum Inspiratory Time
Off, 0.3 – 3 s
Maximum Inspiratory Time
Off 0.3 – 3 s
Target Volume
100 – 1500 ml
Auto-EPAP
On/Off, Pressure Limit: Max EPAP +2 cmH2O – 40 cmH2O, PS 2-38cm Min/Max EPAP: 2 – 20 cmH2O, EPAP Step: 0.5 – 2 cmH2O, Relax Time: 2-12 mins/Off
HFNT
4-60L/min
Ramp (Up/Down)
Off 10-60mins
Humidifier Level
1-5
Heated Circuit
Off, 1-5
Patient Circuit
15mm, 22mm, Custom
O2 Bleed in (Device)
0-30L/min
Monitoring
Displayed data
Ppeak, EPAP, Leakage, MV, Vte % in TgV, Total Rate I:E, Spont Rate, % spont, Inspiratory time, Rise time, SpO2, Pulse, Rate
Power Supplies
Mains supply
100 to 240 V AC
External DC
24 V DC
Internal battery
3 hours
Alarms
Alarms
High Pressure, Low Pressure, High Breath Rate, Low Breath Rate High MV, Low MV, Rebreathing Apnea, Disconnection, High SpO2, Low SpO2, High Pulse Rate, Low Pulse Rate, Low Last Power Source
Dimensions
W x H x D
166 x 185 x 200 mm
Weight
1.8 kg
Noise level (at 10 cmH2O constant pressure)
Less than 28 dB(A)
Connectivity and Software
Built-in connectivity
USB
Compatible Software
PC Software and is prepared for EveryWare Remote Monitoring*
Plug-and-Play accessories
SpO2, Nurse Call, Remote Alarm, Accessories Box
Other
Humidification
Integrable water chamber
Circuits
Cleanable & Disposable leakage circuits with/without heated wires
Confirm Stop
On, Off
Compliance Data (on Screen)
Min Daily Usage Off, 1-24hrs, Total Usage Hours, Total Days, Days with Usage Average Usage, Days Compliant, AHI
