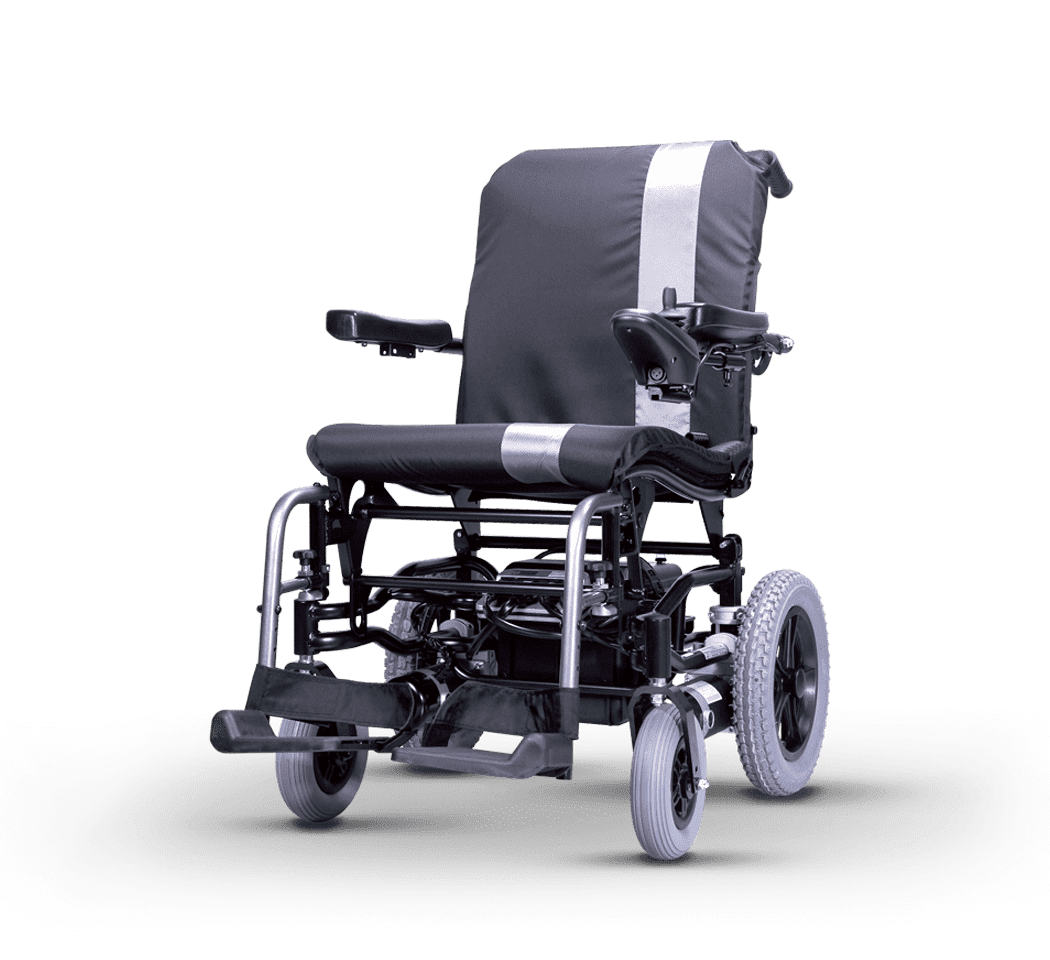

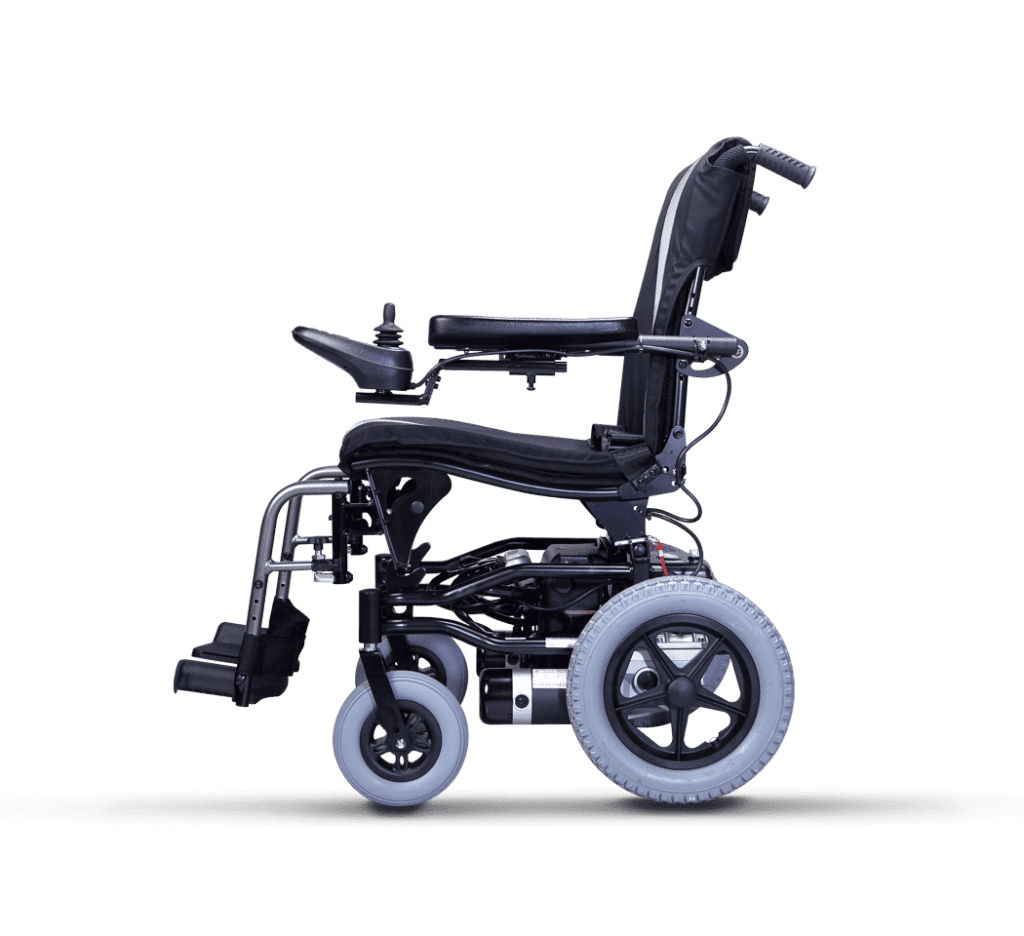

Karma KP 10.3S Electric Wheelchair Highlights
Indoor Maneuverability
The Ergo Nimble’s turning radius is only 64 cm with a total width of 60 cm. Smooth and easy to navigate, this chair moves effortlessly through doorways, onto lifts, or around confined spaces.
S-Ergo Seating System
The S-Ergo Seating is globally patented in many countries. The seating provides the wheelchair user with basic pressure relief without resorting to a foam cushion. While a foam cushion can be cumbersome and pricey, the S-Ergo Seating frame is lightweight and simple, offering the short-term wheelchair user an inexpensive option.
Foldable and Travel-friendly
Disassemble and reassemble with no tools required. Each piece weighs less than 26kg and can be easily placed in a car trunk, making travel easy and simple.
Angle Adjustable Backrest
According to the individual’s body size and unique posture requirements, the backrest angle can be adjusted from 5° to 19°.
Flip-up Armrest
Convenient for lateral transfers, for instance, moving from the chair to the bed
Height Adjustable Armrest
According to the user’s body requirements, the armrest height can be adjusted to four different heights, allowing for a more comfortable fit.
Detachable Swing-Away Footrest
In addition to footplates being height adjustable, the entire footrest can be turned outward or detached for easier transfer in and out of the chair. The footplate is fully adjustable to meet the individual’s needs.
| Brand | Karma Healthcare |
| Product Type | Electric Wheelchair |
| Product Name | Karma KP 10.3S |
| Nominal seat width (in) | 18 |
| Front x Rear wheel size (in) | 8 x 12 |
| Maximum user weight (kg) | 120 |
| Overall length with legrest (mm) | 1030 ~ 1075 |
| Overall width (mm) | 620 |
| Overall height (mm) | 905 ~ 935 |
| Folded length (mm) | 660 |
| Folded width (mm) | 620 |
| Folded height (mm) | 155 |
| Total mass (kg) | 51.3(22 Ah) |
| Total mass without batteries (kg) | 33.5(22 Ah) |
| Mass of the heaviest part (kg) | 16.5(22 Ah) |
| Maximum speed forward (km) | 6 |
| Drive range (km) | 14.9(22 Ah) |
| Minimum turning radius (mm) | 885 |
| Minimum turning radius without user (mm) |
755 |
| Reversing width (mm) | 1050 |
| Ground clearance (mm) | 100 |
| Obstacle climbing (mm) | 50 |
| Static stability downhill (X°) | 25.5 |
| Static stability uphill (X°) | 11 |
| Static stability sideways (X°) | 20.5 |
| Dynamic stability uphill (X°) | 6 |
| Ability to climb rated slope (X°) | 6 |
| Braking method | Electromagnetic Brake |
| Minimum braking distance from max speed (mm) |
1000 |
| Motor power (W) | 200 |
| Battery capacity (Ah) | 22*2 / 36*2 |
| Charger output current (A) | 4 |
| Battery Compartment (L x W x H) (mm) |
180 x 80 x 165 (22 Ah) (Single Compartment) |
| Seat plane angle (X°) | 12 |
| Effective seat depth (mm) | 475 |
| Nominal seat depth (mm) | 460 |
| Effective seat width (mm) | 450 |
| Seat surface height at front edge (mm) |
540 |
| Backrest angle (X°) | 10 ~ 24 |
| Seat to backrest angle (X°) | 88 ~ 102 |
| Backrest height (mm) | 500 |
| Leg to seat angle (X°) | 90 |
| Footrest to seat distance (mm) | 390 ~ 465 |
| Armrest to seat distance (mm) | 200 |
| Front location of armrest structure (mm) |
400 ~ 540 |
