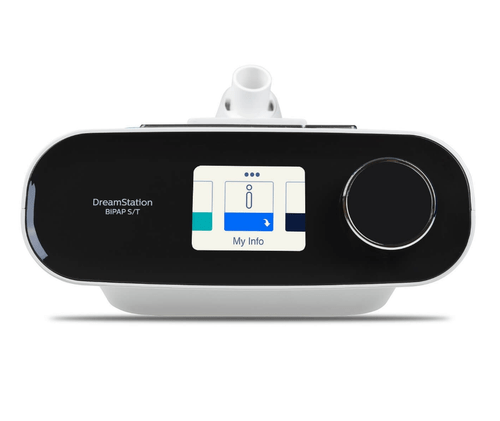

Philips Respironics Dreamstation Bipap ST Features
Stay connected to patients
DreamStation delivers the most comprehensive suite of connectivity options among leading ventilation brands.¹ With integrated Bluetooth® on every device and optional Wi-Fi and cellular modems, you can choose the options that are the most cost effective and the best fit for each patient.
Humidification (optional)
Humidification options include fixed, adaptive, heated tube and pre-heat humidification mode. The modular design features a one-piece, dishwasher-safe water chamber.
Increased efficiencies
DreamStation BiPAP S/T connectivity options transmit waveform and therapy data quickly and cost effectively to support your ventilation reporting needs. The reported feedback can provide better information for troubleshooting and possibly fewer returns.
Daily progress feedback
The Daily Progress Feedback on BiPAP S/T displays a simple trend of the patient’s nightly use to help users track their therapy progress.
Product Details
| Brand | Philips |
| Usage/Application | Hospital & Personal Use |
| Model | Philips Respironics Dreamstation Bipap ST |
| Pressure Range (cm H2O) | 4 to 30 cm H₂O (increment is .5 cm H₂O), EPAP: 4 to 25 cm H₂O (increment is .5 cm H₂O), CPAP max pressure is 20 cm H₂O |
| Ramp Rate (mins) | 5 to 40 minutes (increment is 5 minutes) |
Additional Details
| Rise Time | 1 to 6 |
| Inspiration Time | .5 to 3 sec (increment is .1 sec) |
| Automated Airway Management | Max. EPAP: 4 to 25 cm H2O, Pressure Support: 0 to 26 cm H2O |
General System
| Dimensions | 15.7 x 19.3 x 8.4 cm (without humidifier); 29.7 x 19.3 x 8.4 cm (with humidifier) |
| Breath Rate | 1 to 30 (increment is 1 breath) |
| Warranty | 2 Years |
| On-Board Data Storage Capacity (Min.) | 3 months |
| Electrical Requirements | 100 – 240 V AC, 50/60 Hz, 2.0-1.0 A |
| Humidification | Heated humidification, fixed, adaptive (standard 15 mm or 15 mm heated tube) |
| Flex Pressure Relief | 0 to 3 (only in S-mode) |
| Weight Without Humidifier | 1.33 kg |
| Weight With Humidifier | 1.98 kg |
| Filters | Reusable pollen; disposable ultra-fine |
| Device Setup | LCD, control dial/push button |
| Data Storage Capacity SD Card | 6 months |
| Operating Mode | CPAP, S, S/T |
In The Box
- Philips DreamStation BiPAP S/T Machine
- DreamStation Heated Humidifier (Optional)
- 15mm Std Tube
- DreamStation 80W power supply with Cord
- Carrying Case
- Filters (1 Foam Pollen and 1 Ultra Fine
- User Manual
