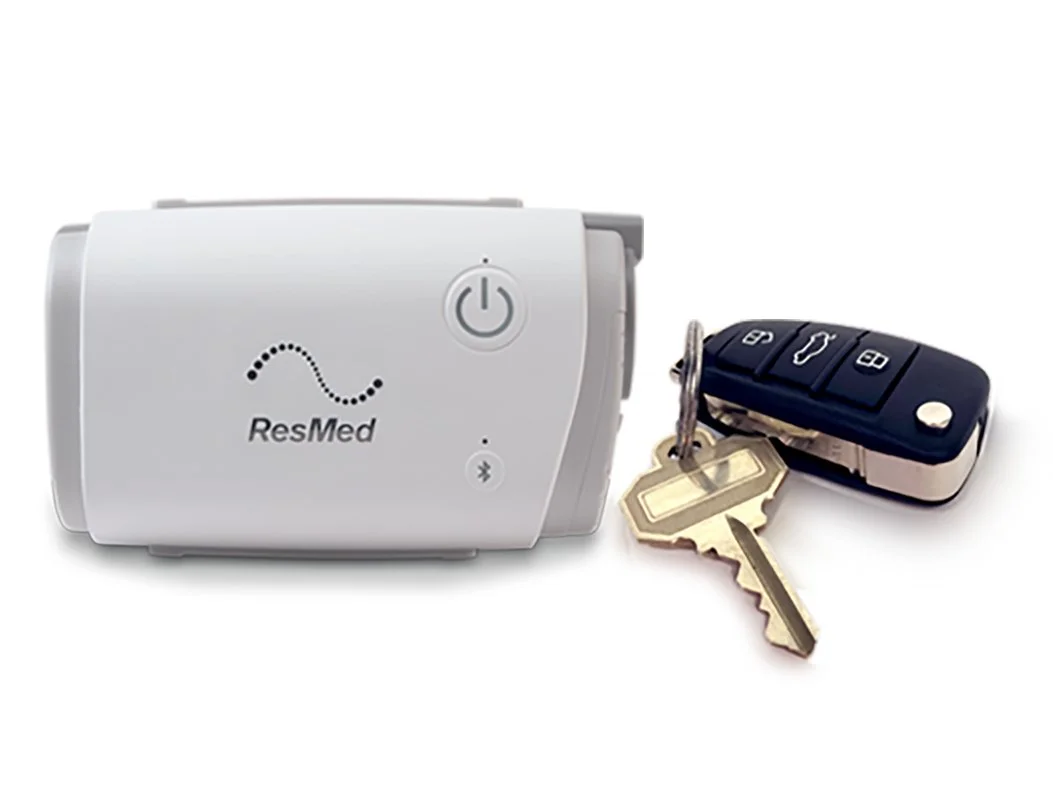

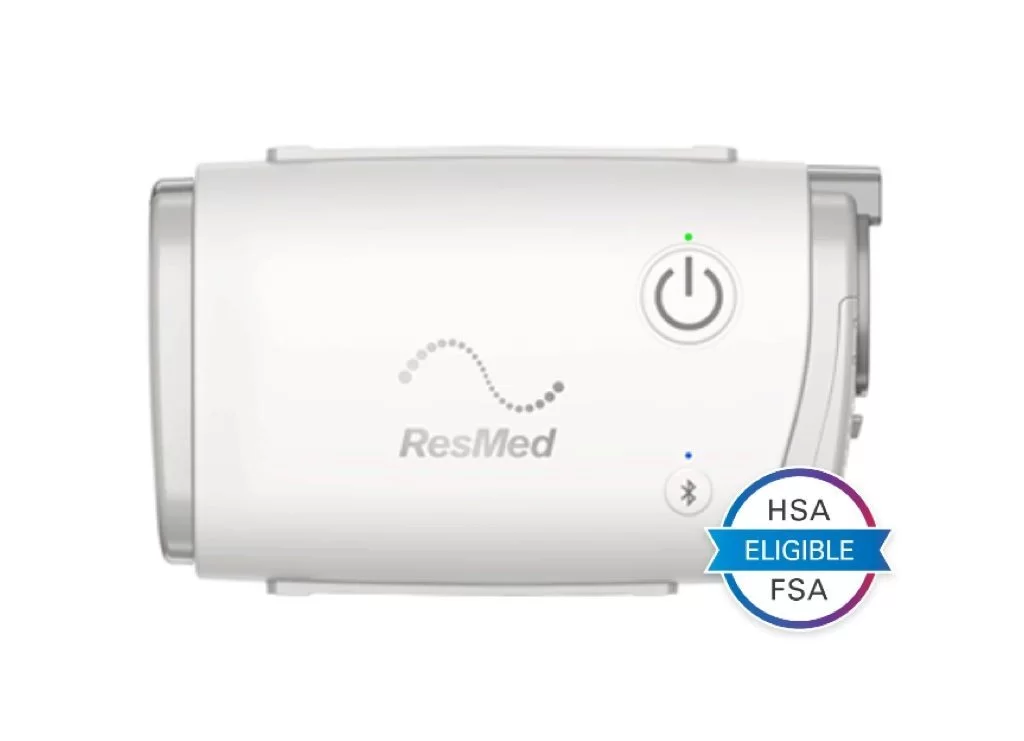

Resmed AirMini Auto CPAP Machine with all the features that ResMed is known for. The AirMini features the same proven therapy modes used in the AirSense™ 10. The AirMini Travel Machine is the World’s Smallest CPAP Machine, weighing less than a pound and fitting in the palm of your hand. Traveling has never been easier, no more dragging around the bulky heavy CPAP Machines. The size does not compromise any of the features of latest technologies that CPAP users are accustomed to in ResMed’s CPAP Machines.
Technical Specifications for the AirMini by ResMed
Power supply unit
-
AC input range: 100–240V, 50–60Hz 115V, 400Hz (nominal for aircraft use)
-
DC output: 24V 0.83A
-
Typical power consumption: 6.3W
-
Peak power consumption: 27W English 21 If power is interrupted during therapy, the machine will automatically restart therapy when power is restored.
-
AirMini power Standby power consumption: 1W
Environmental conditions
-
Operating temperature: +41°F to +95°F (+5°C to +35°C) Note: Under extreme ambient temperature conditions (104°F/40°C) the air and parts of the tubing near the mask may reach temperatures up to 109°F/43°C. These parts of the tubing are not in contact with the user and the machine remains safe under these extreme conditions.
-
Operating humidity: 10 to 95% relative humidity, non-condensing
-
Operating altitude: Sea level to 8,500′ (2,591 m); air pressure range 1013 hPa to 738 hPa
-
Storage and transport temperature: -13°F to + 158°F (-25°C to + 70°C)
-
Storage and transport humidity: 5 to 95% relative humidity, non-condensing
Sound
-
Declared dual-number noise emission values in accordance with ISO 4871:1996
-
Pressure level measured according to ISO 80601-2-70:2015 (CPAP mode) 30 dBA with uncertainty of 2 dBA
-
Power level measured according to ISO 80601- 2-70:2015 (CPAP mode) 38 dBA with uncertainty of 2 dBA
-
The A-weighted sound pressure level measured according to ISO 17510:2015:
-
Air tubing connected to AirMini F20 connector with mask 19 dBA with uncertainty of 3 dBA
-
Air tubing connected to AirMini N20 or P10 connectors with mask 17 dBA with uncertainty of 3 dBA
-
The A-weighted sound power level measured according to ISO 17510:2015:
-
Air tubing connected to AirMini F20 connector with mask 27 dBA with uncertainty of 3 dBA
-
Air tubing connected to the AirMini N20 or P10 connectors with mask 25 dBA with uncertainty of 3 dBA
AirMini machine Dimensions:
-
5.4″ (W) x 3.3″ (D) x 2.1″(H) 136 mm (W) x 84 mm (D) x 52 mm (H) Weight: 300g (10.6oz)
-
Housing construction: Flame retardant engineering thermoplastic
-
Air outlet: Proprietry connector, 16mm inner diameter. Not compatible with EN ISO 5356-1 connectors.
-
Air filter Standard: Material: Polyester non-woven fiber Average arrestance: >75% for ~7 micron dust

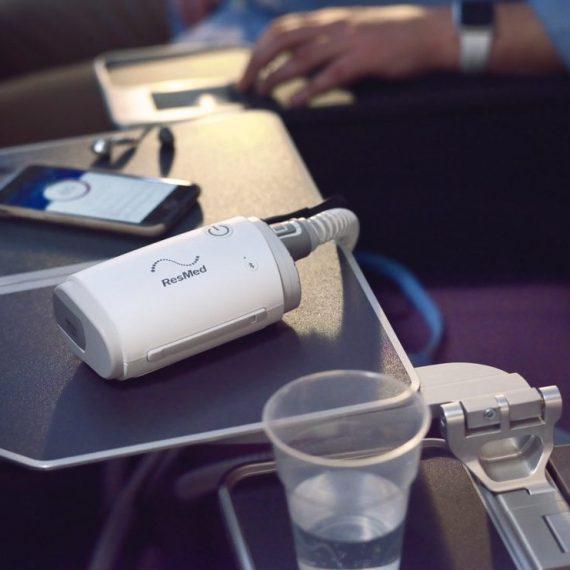

Aircraft use: ResMed confirms that the machine meets the Federal Aviation Administration (FAA) requirements (RTCA/DO-160, section 21, category M) for all phases of air travel.
Operating pressure range
-
AutoSet, AutoSet For Her, CPAP: 4 to 20 cm H2O (4 to 20 hPa)
-
Design life Machine, power supply unit: 5 years
-
Air tubing, connectors: 6 months
-
HumidX humidifier system: 30 days
Resmed AirMini Auto CPAP Product highlights
- AirMini includes therapy modes: CPAP, AutoSet™ (APAP)
- Designed to work with ResMed CPAP masks: AirFit™ P10 for AirMini, AirFit N30 for AirMini, AirFit N20, AirTouch™ N20, AirFit F20, AirTouch F20 and AirFit F30.
- Enjoy a waterless humidification system that delivers the comfort of humidity without the hassle of carrying distilled water everywhere.
- Premium travel bags and accessories for therapy on the go are also available.
- Convenient control with the AirMini app on iOS™ and Android
Compatible Masks with Setup
- Resmed Airfit F20
- Resmed Airfit N20
- Resmed AirFit P10
Good For:
- Veteran Users
- Traveler’s
- Tech Savvy Users
Warranty – 2 Years
In The Box
- Airmini Device
- Power Connector
- Hose
Frequently Asked Questions (FAQ’s)
Q: What is Resmed Airmini ?
A: The ResMed AirMini is a compact, portable CPAP (Continuous Positive Airway Pressure) machine designed to treat sleep apnea. Sleep apnea is a common sleep disorder characterized by pauses in breathing during sleep. CPAP machines are a standard treatment for this condition, as they help keep the airways open by delivering a constant stream of pressurized air to the patient’s throat, preventing airway obstruction and breathing disruptions.
Q: How does Resmed Airmini work?
A: The ResMed AirMini draws in room air through a filter, which helps ensure the air is clean and impure-free. Inside the machine, there is a small motor and a fan. The motor pressurizes the air, creating continuous flow at a specified pressure level. The patient’s prescribed air pressure settings are programmed into the machine. A healthcare professional determines these settings after assessing the severity of the patient’s sleep apnea. The pressurized air is then delivered through a hose to the patient’s airway. Depending on the specific mask style, the patient wears a compatible CPAP mask, which covers the nose, mouth, or both. The continuous positive air pressure delivered by the AirMini helps keep the patient’s airway open. Which prevents the airway from collapsing or becoming obstructed during sleep, a common problem in individuals with sleep apnea. The ResMed AirMini may also include monitoring and data collection features. Some models have built-in data recording capabilities, while others may sync with a mobile app or cloud-based platform to track the patient’s usage and treatment effectiveness.
Q: What is the price of Resmed Airmini?
A: The Price Of Resmed Airmini in India Ranges from 60,000 to 70,000 Depending upon the accessories provided.
.
Q: What conditions can Resmed Airmini treat?
A: The ResMed Airmini is primarily used to treat sleep-related breathing disorders, particularly those involving breathing interruptions during sleep. It is a CPAP machine designed to provide therapy for the following conditions: Obstructive Sleep Apnea (OSA), Central Sleep Apnea (CSA), and Complex Sleep Apnea Syndrome.
Q: Do I need a prescription for Resmed Airmini?
A: Yes, you need a prescription from your doctor for using Resmed Airmini.
Q: What Modes are available in Resmed Airmini?
A: CPAP, AutoSet™ (APAP), and AutoSet for Her (APAP) are modes in Resmed Airmini.
Q: Is Resmed Airmini easy to set up and use?
A: Setting up and using the ResMed Airmini can be relatively straightforward. Still, it’s essential to follow the guidance provided by a healthcare professional and the instructions in the user manual that comes with the device. Here are the general steps for setting up and using the Airmini:
The first step is to obtain a prescription for the device from a healthcare provider, typically after undergoing a sleep study to diagnose your specific condition. Your healthcare provider will determine the appropriate pressure setting and other therapy parameters based on your condition and needs. Plug the device into a power source and ensure it’s placed on a stable surface. Attach your chosen mask with setup tubing. Ensure the mask fits comfortably and creates a proper seal over your nose or nose and mouth, depending on the type of mask. Adjust the headgear and straps to secure the mask without over-tightening.
Q: Which masks are compatible with Resmed Airmini?
A: Resmed Airmini Supports three Masks with their respective setup: Resmed Airfit N20, Resmed Airfit F20 & Resmed Airfit P10 Mask with Setup.
.
Q: Can I use Resmed Airmini during travel?
A: Yes, as Resmed mini is a lightweight and portable CPAP, it is effortless to travel with.
Q: How often should I replace the filters and other parts?
A: you should replace the filter every 3 Months, Mask Every 8 Months, and Setup Every 12 Months for Resmed Airmini
Q: How do I clean and maintain my Resmed Airmini?
A: Proper cleaning and maintenance of your ResMed Airmini machine, as well as the associated equipment like the mask, tubing, and humidifier, are essential to ensure the device functions effectively and remains hygienic. Here’s a general guide on how to clean and maintain your equipment:
Remove the mask from your face. Disassemble the mask components (cushion, frame, headgear, and other removable parts). Wash the mask cushion and any removable parts with mild, soapy, warm water. Rinse thoroughly and allow them to air dry. Wipe the mask frame and headgear with a damp cloth to remove facial oils or residue. Disconnect the tubing, Rinse it with mild, soapy water, and dry it properly before using. Clean Resmed Airmini With Damp Cloth
Q: What data does Resmed Airmini have, and how can I access it?
A: The ResMed Airmini records various types of data related to your sleep therapy, which can be accessed for monitoring and adjusting your treatment. The specific data recorded may vary slightly depending on the model and features of your Airmini device, but here is a general overview of the common types of data recorded like Usage Data, AHI (Apnea-Hypopnea Index), Leak Data, Pressure Data, Flow Data.
Q: What are the benefits of using Resmed Airmini?
A: Using the ResMed Airmini, a CPAP machine, offers several benefits for individuals with sleep-related breathing disorders, such as obstructive sleep apnea (OSA) and other respiratory conditions. Here are some of the key benefits of using the Airmini: Effective treatment, customized therapy, auto-adjusting features, and comfortable breathing.
Q: Does Resmed Airmini come with a warranty?
A: MG Medicare provides you with three 3-year manufacturer’s warranties for Resmed Airmini.
Q: Can I use Resmed Airmini for pediatric patients?
A: The ResMed Airmini is primarily designed for adult patients and is not typically recommended for pediatric patients, particularly infants and young children. Pediatric sleep-related breathing disorders and their treatment require specialized equipment and expertise.
