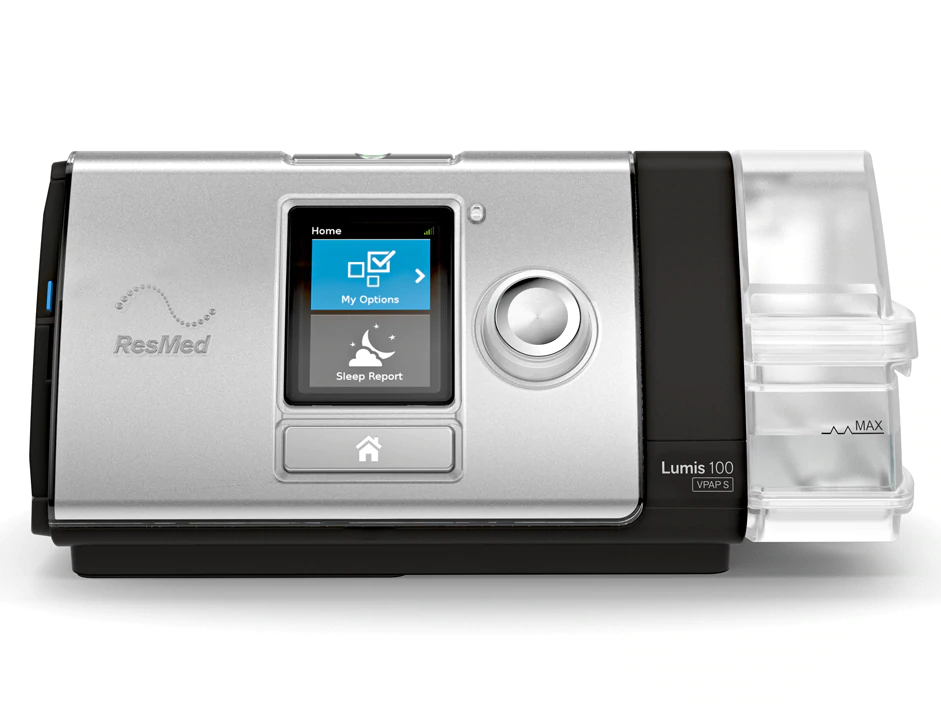

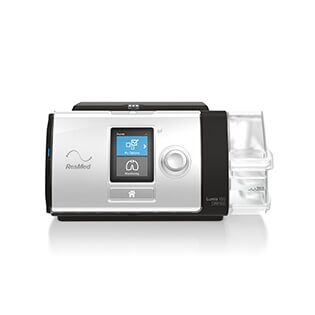

Resmed Lumis 100 VPAP S is a noninvasive ventilator designed for spontaneously breathing, non-dependent patients with respiratory insufficiency.
Resmed Lumis 100 VPAP S Features
- Vsync provides excellent patient–ventilator synchrony, even in the presence of a significant leak.
- TiControl™ lets you set min and max limits on either side of the patient’s ideal inspiratory time to encourage spontaneous breath.
- Trigger and cycle help you optimize settings according to the patient’s condition, using five trigger and cycle sensitivity levels.
- QuickNav for low-touch therapy adjustment. By simply double-clicking the home button on the device, you can toggle between the Settings and Monitoring screens to change and check settings quickly and easily.
- Climate Control Auto for automatic humidification. When used with a HumidAir™ heated humidifier and ClimateLineAir™ heated tube, Lumis delivers humidification automatically – no settings to change and no complicated menus to navigate.
- Ramp and Ramp Down for extra comfort. Lumis offers both Ramp and Ramp Down features to help patients ease into and out of each therapy session.
- ResScan software for advanced clinical insights. ResScan enables you to download your patients’ therapy data, change ventilator settings, and gain insight into their therapy progress across a number of metrics (including AHI, leak, and pressure). High-resolution data (at 25 Hz) is also available for breath-by-breath analysis and even greater insight. Rescan Availability is subject to availability in the region, Please contact support for more on Rescan
Technical Specifications
| Brand | Resmed |
| Model Name/Number | Lumis 100 Vpap S |
| Ventilation Modes | CPAP, S |
| Operating Pressure Range | 3-25 cm H2O(2-25 hPa) S,ST,T mode 4-20 cm H2O(4-20hPa) in CPAP mode |
| Sound Pressure Level | 26.6 dBA with uncertainty of 2 dBA as measured according to(CPAP mode) |
| 90 W Power Supply Unit | Input range:100/240 V,50/60 Hz,57VA |
| Operating Temperature | +5 degrees C o +35 degrees C |
| Storage and Transport Temperature | -20 degrees C to +60 degrees C |
| Housing Construction | Flame retardant engineering thermoplastic |
| Supplemental Oxygen | Recommended maximum flow: 15L/min |
| Standard Air Filter | Polyester non-woven fiber |
| Tubing | Climateline |
| Air Outlet | 22 mm air outlet complies |
Country Of Origin- Australia
Warranty – 3 Years
In The Box:
- Device
- Humidifier Chamber
- Climate Line Tubing
- Power adaptor and Cable
- SD Card
- Resmed Travel Carry Case
