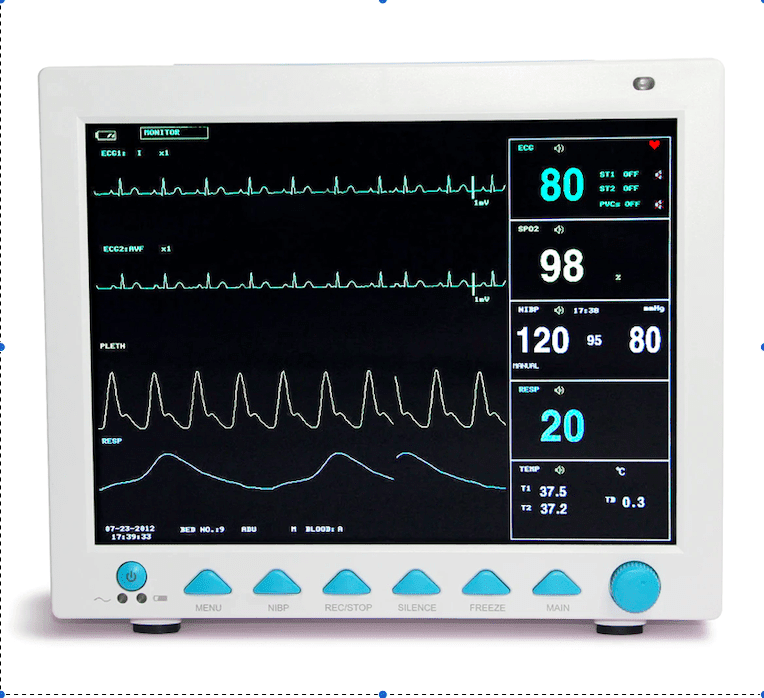

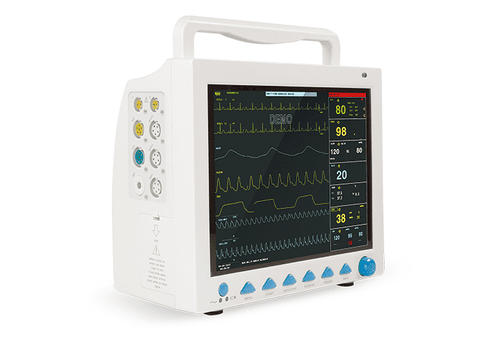

Contec 5 Para Monitor – CMS 8000 (FDA Approved )

Functions

• Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
• ECG Heart rate(HR)
• ECG waveform
• Arrhythmia and ST-segment analysis
• RESP Respiration rate(RR)
• Respiration waveform
• SpO2 Oxygen saturation(SpO2)
• Plethysmogram(PLETH) waveform
• Pulse rate(PR)
• Bar graph
• NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
• TEMP T1, T2, TD
• IBP(optional) CH1：SYS，DIA，MAP
• CH2：SYS，DIA，MAP
• IBP waveform
• CO2 EtCO2
• InsCO2:Inspired Minimum CO2
• AwRR:Air Way Respiration
• It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.

Features

• 12.1'' TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakh, Polish, Czech).
• Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
• All-round monitor for adult, pediatric and neonate.
• With standard interface, oxygen graph, trend graph, big character interface and view bed, convenient to observe.
• Finish all operations by keys and knobs.
• Maximum 8-channel waveform synchronous display.
• Display 7-lead ECG waveform on one screen, cascade ECG waveform display
• Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
• Heart rate variability (HRV) analysis function
• NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
• Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
• Drug concentration calculation and titration table functions.
• One-touch printing of trend graph
• Connect to Central Monitoring System by 3G, Wi-Fi or wired mode.
• AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
• Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).

Performance

▲ECG

• Lead mode: 3-lead or 5-lead
• Lead selection: I, II, III, aVR, aVL, aVF, V
• Waveform: 5-lead, dual-channel
• 3-lead, single-channel
• Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV
• Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s

HR:

• Measurement and alarm range: 15～350 bpm
• Accuracy: ±1 % or ±1 bpm, whichever is greater
• Alarm accuracy: ± 2 bpm
• Resolution: 1 bpm
• ST-segment monitoring:
• Measurement and alarm range: -2.0 mV ～ +2.0 mV
• Accuracy: -0.8 mV～+0.8 mV ±0.04 mV or ±10%, whichever is greater
• Other range: unspecified
• Arrhythmia analysis: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2,
• PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
• Pacemaker: yes

▲RESP

• Method: R-F(RA-LL) Impedance
• Respiration rate:
• Measurement and alarm range: 0～150 rpm
• Resolution: 1 rpm
• Measurement accuracy: ±2 rpm
• Alarm accuracy: ±3 rpm
• Apnea alarm: 10～40s
• Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s

▲NIBP

• Method: Oscillometry
• Mode: Manual/AUTO/STAT
• Measurement interval in AUTO mode: 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes
• Measurement period in STAT mode: 5 minutes
• Measurement and alarm range: 10 ～ 270 mmHg
• Resolution: 1 mmHg
• Cuff pressure accuracy: ±3 mmHg
• Measurement accuracy:
• Maximal mean deviation: ±5 mmHg
• Maximal standard deviation: 8 mmHg
• Over-pressure protection:
• Adult mode: 297±3 mmHg
• Pediatric mode: 240±3 mmHg
• Neonatal mode: 147±3 mmHg

▲SpO2

• Measurement and alarm range: 0 ～ 100%
• Resolution: 1%
• Measurement accuracy: 70%～100%: ±2%;
• 0%～69%: unspecified

▲PR

• Measurement and alarm range: 30 ～ 250 bpm
• Measurement accuracy: ±2 bpm or ±2%, whichever is greater

▲TEMP

• Channel: dual-channel
• Measurement and alarm range: 0 ～ 50℃
• Resolution: 0.1 ℃
• Accuracy: ±0.1 ℃

▲EtCO2

• Method: Sidestream or Mainstream
• Measuring Range: 0～150mmHg

Resolution:

• 0～69 mmHg, 0.1 mmHg
• 70～150 mmHg, 0.25 mmHg

Accuracy:

• 0～40 mm Hg ±2 mm Hg
• 41～70 mm Hg ±5%
• 71～100 mm Hg ±8%
• 101～150 mm Hg ±10%
• AwRR Range: 2～150 rpm
• AwRR Accuracy: ±1BPM
• Apnea Alarm: Yes

Accessories

• Adult fingertip SpO2 probe (5-pin)
• Adult NIBP cuff
• NIBP extension tube
• ECG lead cable
• ECG electrode
• Temperature probe
• Power cord
• User Manual （GB only）on request for other Language

Physical characteristic

• Dimension: 314 mm(L) × 145 mm(W) × 264 mm(H)
• Weight: 3.9 Kg

Brand Warranty - 1 Year

Country Of Origin -China
