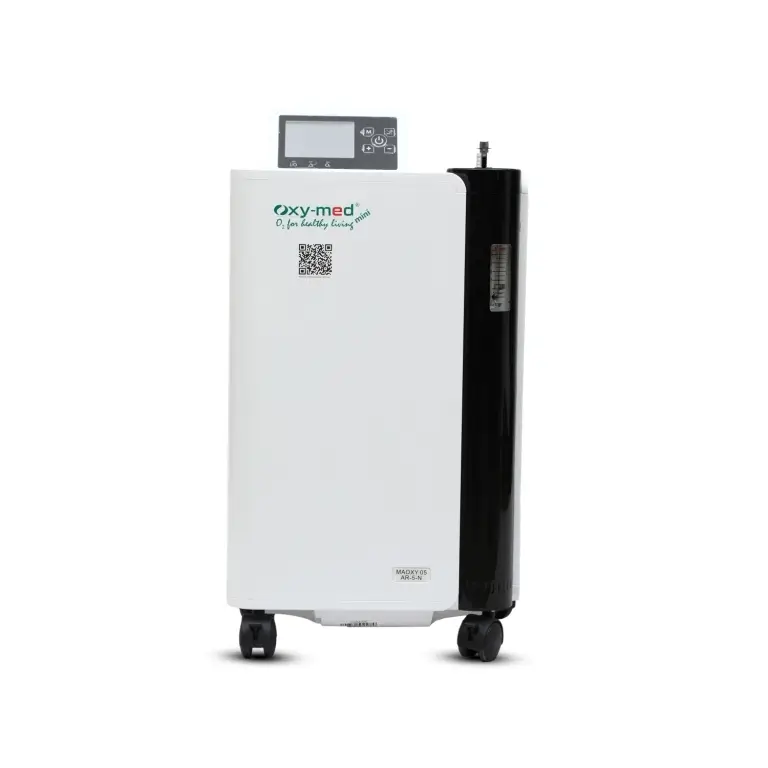

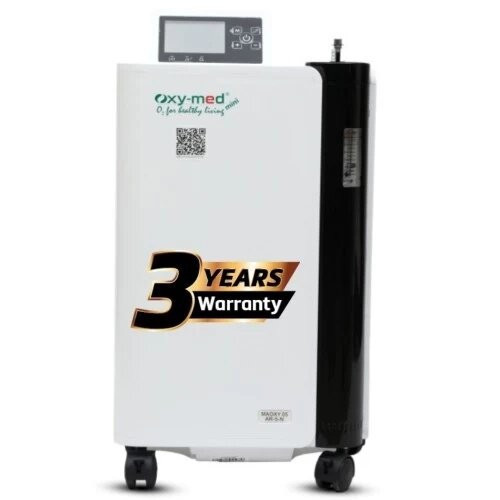

Oxymed Mini Oxygen Concentrator 5 LPM is very useful for those needed oxygen regular basis at home. Get Extra Primary and Secondary filters Free with every Oxygen Concentrator another feature it has Inbuild Nebulizer Option. It can give a maximum of 5LPM of oxygen flow. It is the first choice for oxygen therapy at home because of lightweight and compact in size as compared to all other oxygen concentrators available on the market. It is not a Portable oxygen concentrator but small size oxygen Concentrator machine for home use.
Oxymed Mini Oxygen Concentrator Features
| Brand | Oxymed |
| Model Name/Number | MAOXY05/ (AR-5-N) |
| Flow Rate | 5 LPM |
| Oxygen Concentration | 93% |
| Warranty | 3 Years |
| Sound Level | <40db |
| Weight (in kg) | 15kg |
| Outlet Pressure | 40-70KPa |
| Power Consumption | 390VA |
•Usage/Application – Home Operation Electrical
•Filters – Compressor Intake
•Weight – 19 kg
•Oxygen Concentration – 93% (+3%,-3%)
•Alarm Type – DIGITAL Average
•Power Consumption – 360W
•Operation Mode – Portable
•Color – WHITE Material WHITE
•Features – 5 LPM
•Power – 220
•Sound Level- Less than or equal to 50dB(A)
•Voltage AC – 220V
•Display Type – LCD
•Frequency -50Hz
•Oxygen Flow – 5LPM
•Accuracy – 96
•Flow Rate – 5 LPM liters per minute
•Diameter – 120
•Number Of Wheels – 4
•Pressure – 7 Size 10
•Temperature -25
•Oem Service – Yes
•Dimensions – 34 cm x 30 cm x 65 cm (W x D x H)
•Flow – 1 LPM-5 LPM
•Power Consumption – 350 Watts
•Operating Conditions – 5 Degree C to 55 Degree C
•Storage Temperature – -20 Degree C to 60 Degree C
•Relative Humidity – 80% RH
CONTENT OF BOX
• Built-in humidifier bottle
•Power cord
•User manual
Frequently Asked Questions (FAQ’s)
Q: What is the Oxymed Mini Oxygen Concentrator?
A: The Oxymed Mini Oxygen Concentrator is a portable medical device designed to provide oxygen therapy to individuals who have low oxygen levels in their blood. The “Oxymed Mini” is a compact version of an oxygen concentrator, typically meant for home use or for individuals who need supplemental oxygen.
Q: How does the Oxymed Mini Oxygen Concentrator work?
A: An Oxymed Mini Oxygen Concentrator, like other oxygen concentrators, operates on the principle of pressure swing adsorption (PSA) to extract and deliver oxygen from the surrounding air. Here’s how it works:
The concentrator draws in room air through an intake vent or filter. The incoming air passes through a series of filters to remove dust, particulate matter, and other impurities. This helps ensure that the oxygen delivered is clean and free of contaminants. The filtered air is then compressed to increase the air pressure. This compression is necessary to facilitate the oxygen separation process. The heart of the oxygen concentrator is the molecular sieve bed. This bed contains a material (zeolite) that has a high affinity for nitrogen. When the compressed air is directed through the sieve beds, the zeolite selectively adsorbs the nitrogen from the air, allowing the oxygen to pass through. As the compressed air flows through the sieve beds, nitrogen is absorbed, while oxygen-rich gas continues through the beds and exits as the product gas. The purified oxygen is collected and delivered to the patient through a tube or cannula. The concentrator typically offers adjustable flow rates so the patient can receive the prescribed amount of oxygen. The remaining nitrogen and other gasses that were adsorbed by the zeolite are released and vented back into the room. Oxygen concentrators work on a continuous cycle. As long as the concentrator is powered on and functioning, it will keep drawing in air, separating gasses, and delivering oxygen to the patient.
Q: What conditions can the Oxymed Mini Oxygen Concentrator Treat?
A: The Oxymed Mini Oxygen Concentrator is primarily designed to provide supplemental oxygen to individuals who have low blood oxygen levels due to various medical conditions. It doesn’t treat specific conditions but rather helps manage symptoms associated with conditions that result in decreased oxygen levels in the blood. It treats Chronic Obstructive Pulmonary Disease (COPD), Pneumonia, Asthma, Interstitial Lung Diseases, Heart Conditions, and Sleep Apnea.
Q: What is the price of Oxymed Mini Oxygen Concentrator?
A: The Price of Oxymed Mini Oxygen Concentrator in India ranges from 38000 to 42000 depending on the accessories provided
Q: How noisy are Oxymed Mini Oxygen Concentrators?
A: The noise level of Oxymed Mini Oxygen Concentrators can vary depending on the specific model and design. Generally, oxygen concentrators are designed to operate quietly to minimize disruption for patients and their caregivers. The noise produced by an oxygen concentrator is typically measured in decibels (dB), and the level is 43Db.
Q: Do I need a prescription for Oxymed Mini Oxygen Concentrator?
A: A prescription is typically required to use an Oxymed Mini Oxygen Concentrator or an oxygen concentrator. Oxygen concentrators are medical devices used to deliver supplemental oxygen therapy, and they are regulated by healthcare authorities to ensure their safe and appropriate use.
Q: What Modes are available in Oxymed Mini Oxygen Concentrator?
A: The Oxymed Mini oxygen concentrator is a continuous-mode oxygen concentrator that delivers oxygen according to a set flow rate. Although there is a nebulizer option available as well,
Q: What is the pressure range in Oxymed Mini Oxygen Concentrator?
A: The pressure range of the Oxymed Mini oxygen concentrator is 40-70 kPa.
Q: Is Oxymed Mini Oxygen Concentrator easy to set up and use?
A: Portable oxygen concentrators like the Oxymed Mini are designed to be relatively easy to set up and use. They are created to provide convenience and user-friendliness, especially for individuals who require oxygen therapy on the go or at home. Setting up and using the Oxymed Mini generally involves the following steps:
1. Plug the Device into a power source. Some models might also have a battery option for use when away from a power outlet.
2. Turn on the oxygen concentrator using the designated power button.
3. Set the prescribed oxygen flow rate as recommended by your healthcare provider. Most models have adjustable settings to match the required flow rate.
4. Connect the nasal cannula to the oxygen outlet on the concentrator and place it over your nose for oxygen delivery. The cannula is the most commonly used accessory for these devices.
5. Keep an eye on the Device to ensure it’s functioning properly and delivering the required oxygen flow.
Q: Which masks are compatible with Oxymed Mini Oxygen Concentrator?
A: The Oxymed Oxygen Concentrator, like most portable oxygen concentrators, typically utilizes a nasal cannula rather than a mask for delivering oxygen to the user. A nasal cannula is a two-pronged plastic tube worn in the nostrils that is lightweight and allows for comfortable, direct delivery of oxygen.
Q: What is the difference between Oxymed Mini Oxygen Concentrator and Nidek Nuvo Lite Oxygen Concentrator?
A: Both the Oxymed Oxygen Concentrator and the Nidek Nuvo Lite Oxygen Concentrator are devices designed to provide supplemental oxygen to individuals with low blood oxygen levels. While both serve a similar purpose, they may have differences in their specifications, features, and design. Here are some general differences that might exist:
Company & Country Of Origin
Oxymed Mini is manufactured in China and marketed by Oxymed in India; Nidek Nuvo Lite is Manufactured by Nidek Medical in the USA and Marketed by Nidek Medical India.
Size and portability:
> The “Oxymed Mini” is marketed as a portable oxygen concentrator, emphasizing its compact size and lighter weight for greater mobility.
> The Nidek Nuvo Lite might be a bit larger and might not be as easily portable as the “Mini” versions, which are typically designed for home use rather than frequent travel.
Oxygen Output and Flow Settings:
> Both are 5LPM Continous Flow Oxygen Concentrators; although the Pressure output in Oxymed Mini is 5.5 PSI & Nidek Nuvo Lite Pressure delivery is 7.5 PSI
Noise Level:
> Noise levels can vary between different oxygen concentrator models. Nidek Nuvo Lite is Quieter than Oxymed Mini.
Power Options:-
> Both are Home-based concentrators that will need the AC power supply to run efficiently.
Q: Can I use Oxymed Mini Oxygen Concentrator during travel?
A: Yes,, you can use it during travel as it is safer and easy to carry.
Q: How often should I replace the filters and other parts?
A: The frequency of filter replacement in an Oxymed Oxygen Concentrator or any oxygen concentrator may vary depending on the specific model, usage, and environmental conditions. Filters are an essential component of oxygen concentrators as they help ensure the purity of the oxygen being delivered. Regular filter maintenance is crucial to maintain the efficiency and safety of the Device. The Air Filter of the Oxygen Concentrator should be changed every 2000 Hours.
Q: Where can I Purchase or Rent an Oxymed Mini Oxygen Concentrator?
A: You Can Purchase or Rent an Oxymed Oxygen Concentrator from MG Medicare, which is the best equipment supplier available online as well as in offline stores in Delhi, Greater Noida, Faridabad, Gurgaon, Lucknow, and many more cities all over the country.
Q: Can an Oxymed Mini Oxygen Concentrator be used during power outages?
A: The ability to use an Oxymed Oxygen Concentrator or any oxygen concentrator during a power outage depends on the specific model and whether it is equipped with a built-in backup power source.
Q: Where are the Oxymed Mini Respironics Service Center in India?
A: Oxymed Oxygen concentrator Service Centers in India are at various locations like Gurgaon, Delhi, Lucknow, Mumbai, Chennai, Kolkata and Bangalore.
Q: How Long can you use the Oxymed Mini Oxygen Concentrator continuously?
A: The Oxymed Oxygen Concentrators are low maintenance. The life of the Device is 3-4 Years. However, You can use an Oxygen Concentrator Continuously for 5-6 hours and then give it a break of 30 Minutes & then you can repeat this cycle.
Q: How do I clean and maintain my Oxymed Mini Oxygen Concentrator?
A: Proper cleaning and maintenance of your Oxymed Oxygen Concentrator are essential to ensure its reliable and safe operation. Regular maintenance helps prolong the life of the Device and maintains the quality of oxygen delivered. Here are some general guidelines on how to clean and maintain your Oxymed Mini Oxygen Concentrator:
1. Place the oxygen concentrator in a well-ventilated, clean, and dry area to prevent the intake of dust and contaminants.
2. Avoid placing it in direct sunlight or near heat sources.
3. Replace the Air Intake Filter every 2 Hours.
4. Wipe the exterior of the oxygen concentrator with a soft, damp cloth to remove dust and dirt. Do not use abrasive or harsh cleaning agents that can damage the surface.
5. Change the Humidifier Bottle Every 6 Months and Nasal Cannula Every Month.
6. Periodically inspect the concentrator for any signs of wear or damage, such as frayed cords, loose connections, or unusual noises.
7. Get Your Oxymed Mini Oxygen Concentrator serviced in 12 Months from an Authorized Dealer or Service Center.
Q: What data does Oxymed Mini Oxygen Concentrator store, and how can I access it?
Ans. However, some advanced medical equipment or newer models might come equipped with monitoring or data recording capabilities. This could include functionalities such as tracking usage statistics, error logs, or device performance metrics for maintenance and troubleshooting purposes. If the Oxymed or any other oxygen concentrator has such features, the data stored might include Usage Hours.
Q: What are the benefits of using Oxymed Mini Oxygen Concentrator?
A: Using an Oxymed oxygen Concentrator or any oxygen concentrator can offer several benefits for individuals with respiratory conditions or those who require supplemental oxygen therapy. Here are some of the key advantages:
Oxygen concentrators provide a continuous supply of oxygen without the need for frequent refills or cylinder replacements, making them more convenient for long-term oxygen therapy at home. Over time, oxygen concentrators can be more cost-effective compared to oxygen cylinders, as they eliminate the need for refills and reduce the associated delivery and storage costs. Oxygen concentrators are eco-friendly as they generate oxygen from the surrounding air, reducing the reliance on oxygen production and transportation processes. Most oxygen concentrators allow for adjustable flow rates, so healthcare providers can prescribe the exact amount of oxygen a patient needs, and the Device can be tailored to meet those requirements. Concentrators provide:
A continuous supply of oxygen.
It is ensuring that patients receive the prescribed oxygen levels consistently.
Continuity
Oxymed Oxygen Concentrators are designed for ease of use and typically require minimal maintenance, such as filter replacement and occasional cleaning. These devices are equipped with safety features like alarms for low oxygen purity, power outages, and filter replacement to ensure the patient’s safety. Patients don’t have to worry about running out of oxygen as long as the Device is adequately maintained and powered. Portable models allow patients to lead more active lifestyles by providing oxygen on the go. These models often come with rechargeable batteries. Oxygen therapy can enhance the quality of life for individuals with chronic respiratory conditions, allowing them to engage in daily activities and sleep better. Patients using oxygen concentrators do not need to carry or change heavy oxygen cylinders, reducing physical strain and discomfort. With the ability to adjust flow rates, oxygen concentrators ensure that patients receive the appropriate oxygen levels as recommended by their healthcare providers.
Q: Does the Oxymed Mini Oxygen Concentrator come with a warranty?
A: Yes, MG Medicare provides you with a warranty of 3 years for the Oxymed oxygen concentrator.
Q: What is the Power Consumption of Oxymed Mini Oxygen Concentrator?
A: The power Consumption of the Oxymed Oxygen Concentrator is 350 W.
Q: What is the Approximate Life of an Oxygen Concentrator?
A: The Approximate Life of an Oxygen Concentrator is between 3 and 4 years.
Q: What is the purity of the Oxymed Mini oxygen concentrator?
A: The purity of the Oxymed oxygen concentrator is 90-96% at all Flow rates.
